Data Flow Model

The data flow model automates data propagation between nodes. When a node’s output changes, connected nodes automatically receive the new data. This is ideal for visual programming, calculators, image processing pipelines, and similar applications.

Overview

The data flow system has three main components:

DataFlowGraphModel – Manages nodes and routes data
NodeDelegateModel – Your node logic (one class per node type)
NodeDelegateModelRegistry – Factory for creating node instances

Setting Up

1. Define your data type:

#include <QtNodes/NodeData>

class NumberData : public QtNodes::NodeData
{
public:
    NumberData(double value = 0.0) : _value(value) {}

    // Unique type identifier
    QtNodes::NodeDataType type() const override {
        return {"number", "Number"};
    }

    double value() const { return _value; }

private:
    double _value;
};

2. Create a node delegate:

#include <QtNodes/NodeDelegateModel>

class AdditionNode : public QtNodes::NodeDelegateModel
{
    Q_OBJECT
public:
    // Identity
    QString caption() const override { return "Add"; }
    QString name() const override { return "Addition"; }

    // Ports
    unsigned int nPorts(PortType type) const override {
        return type == PortType::In ? 2 : 1;
    }

    NodeDataType dataType(PortType, PortIndex) const override {
        return NumberData{}.type();
    }

    // Data handling
    void setInData(std::shared_ptr<NodeData> data, PortIndex port) override;
    std::shared_ptr<NodeData> outData(PortIndex) override;

    // Widget (optional)
    QWidget* embeddedWidget() override { return nullptr; }

private:
    std::shared_ptr<NumberData> _input1, _input2, _result;
};

3. Register nodes and create the model:

auto registry = std::make_shared<NodeDelegateModelRegistry>();

// Register with category for menu organization
registry->registerModel<NumberSourceNode>("Sources");
registry->registerModel<AdditionNode>("Operators");
registry->registerModel<DisplayNode>("Outputs");

DataFlowGraphModel model(registry);
DataFlowGraphicsScene scene(model);

NodeDelegateModel Methods

Required methods:

Method	Purpose
`name()`	Unique identifier for serialization
`caption()`	Display name on node
`nPorts(PortType)`	Number of input/output ports
`dataType(PortType, PortIndex)`	Type of data at each port
`setInData(data, port)`	Receive data on input port
`outData(port)`	Provide data from output port
`embeddedWidget()`	Return widget or nullptr

Optional methods:

Method	Purpose
`captionVisible()`	Hide caption (default: true)
`portCaption(type, index)`	Custom port labels
`portCaptionVisible(type, index)`	Show/hide port labels
`resizable()`	Allow node resizing (default: false)
`save()` / `load()`	Custom serialization

Implementing Data Flow

Receiving data (setInData):

void AdditionNode::setInData(std::shared_ptr<NodeData> data, PortIndex port)
{
    auto numberData = std::dynamic_pointer_cast<NumberData>(data);

    if (port == 0)
        _input1 = numberData;
    else
        _input2 = numberData;

    // Compute result
    if (_input1 && _input2) {
        double sum = _input1->value() + _input2->value();
        _result = std::make_shared<NumberData>(sum);
    } else {
        _result.reset();  // Invalid if inputs missing
    }

    // Notify downstream nodes
    emit dataUpdated(0);
}

Providing data (outData):

std::shared_ptr<NodeData> AdditionNode::outData(PortIndex)
{
    return _result;
}

Signals to emit:

dataUpdated(portIndex) – Output data changed, propagate downstream
dataInvalidated(portIndex) – Output is no longer valid

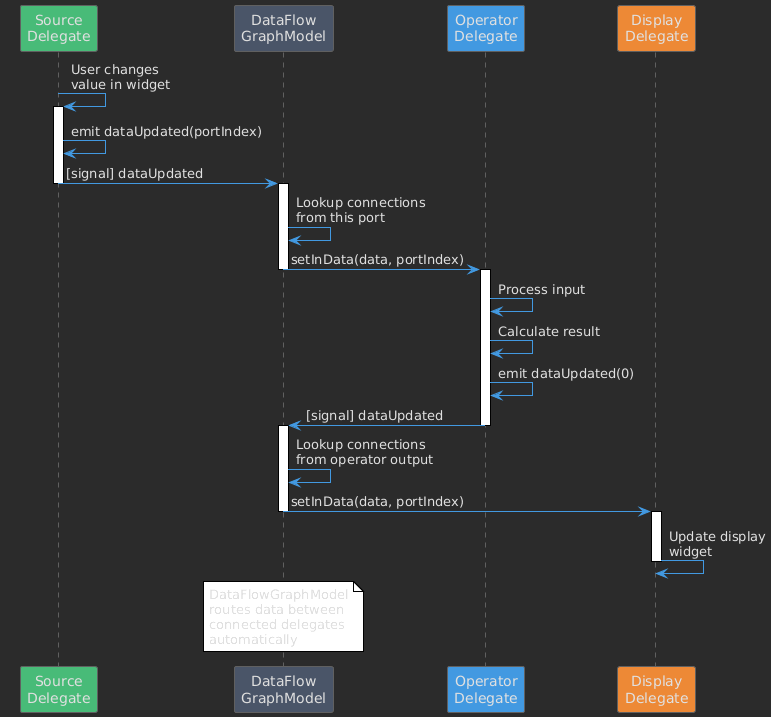

Data Flow Diagram

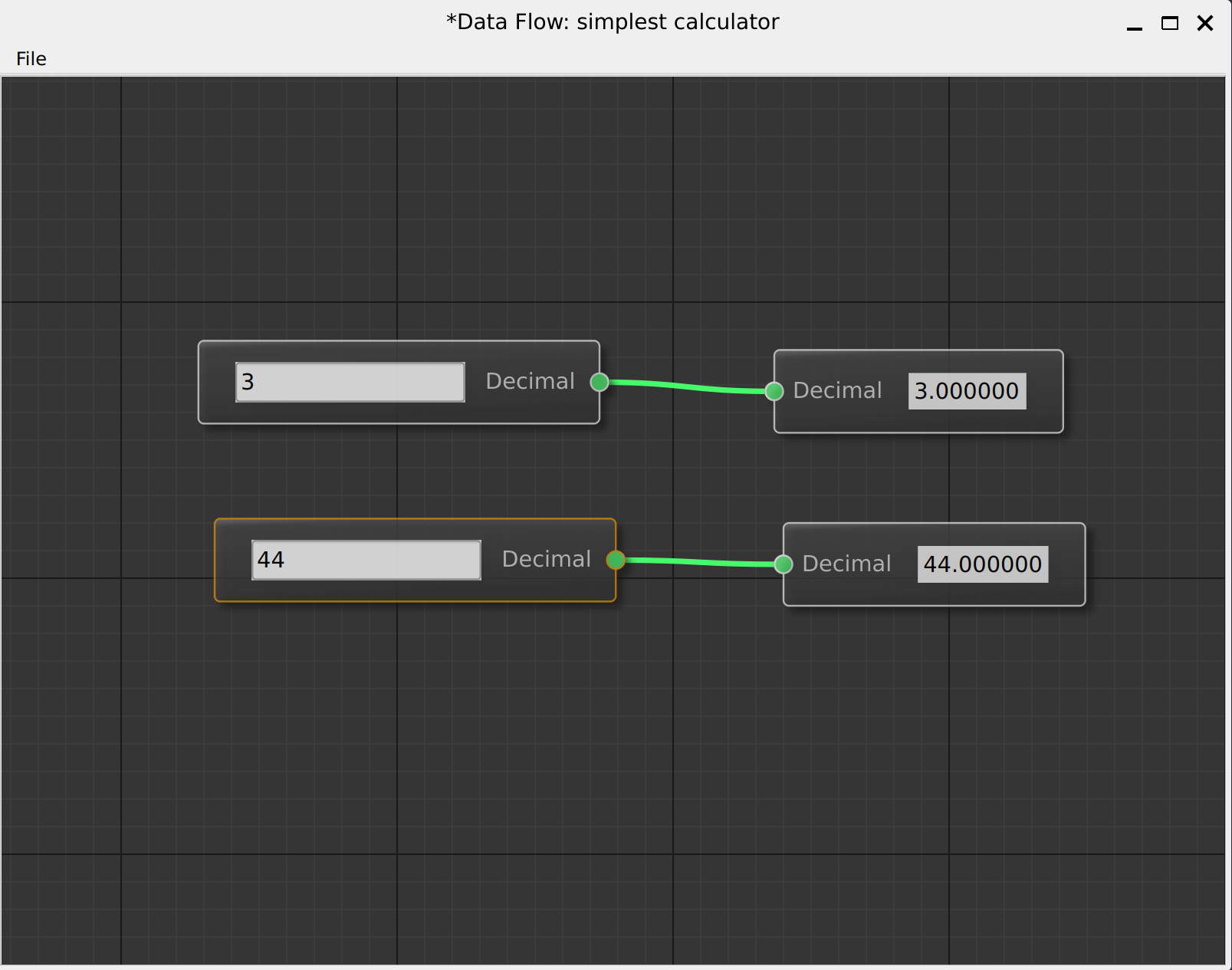

Embedded Widgets

Add interactive controls to your nodes:

class NumberSourceNode : public NodeDelegateModel
{
public:
    QWidget* embeddedWidget() override
    {
        if (!_spinBox) {
            _spinBox = new QDoubleSpinBox();
            connect(_spinBox, &QDoubleSpinBox::valueChanged,
                    this, &NumberSourceNode::onValueChanged);
        }
        return _spinBox;
    }

private slots:
    void onValueChanged(double value)
    {
        _data = std::make_shared<NumberData>(value);
        emit dataUpdated(0);  // Push new value downstream
    }

private:
    QDoubleSpinBox* _spinBox = nullptr;
    std::shared_ptr<NumberData> _data;
};

Validation State

Use NodeValidationState to indicate whether a node’s configuration is valid. When the state is Warning or Error, a colored icon appears at the node’s corner:

Valid (no icon) – Node is properly configured
Warning (orange icon) – Some issues, but processing may work
Error (red icon) – Invalid configuration, cannot process

The _stateMessage is displayed as a tooltip when hovering over the node.

void MyNode::setInData(std::shared_ptr<NodeData> data, PortIndex)
{
    if (!data) {
        // Show warning with tooltip message
        NodeValidationState state;
        state._state = NodeValidationState::State::Warning;
        state._stateMessage = "Missing input data";  // Shown on hover
        setValidationState(state);
        return;
    }

    if (!isValidInput(data)) {
        // Show error with tooltip message
        NodeValidationState state;
        state._state = NodeValidationState::State::Error;
        state._stateMessage = "Invalid input format";  // Shown on hover
        setValidationState(state);
        return;
    }

    // Input is valid - clear any previous state
    NodeValidationState state;
    state._state = NodeValidationState::State::Valid;
    setValidationState(state);

    // Process data...
}

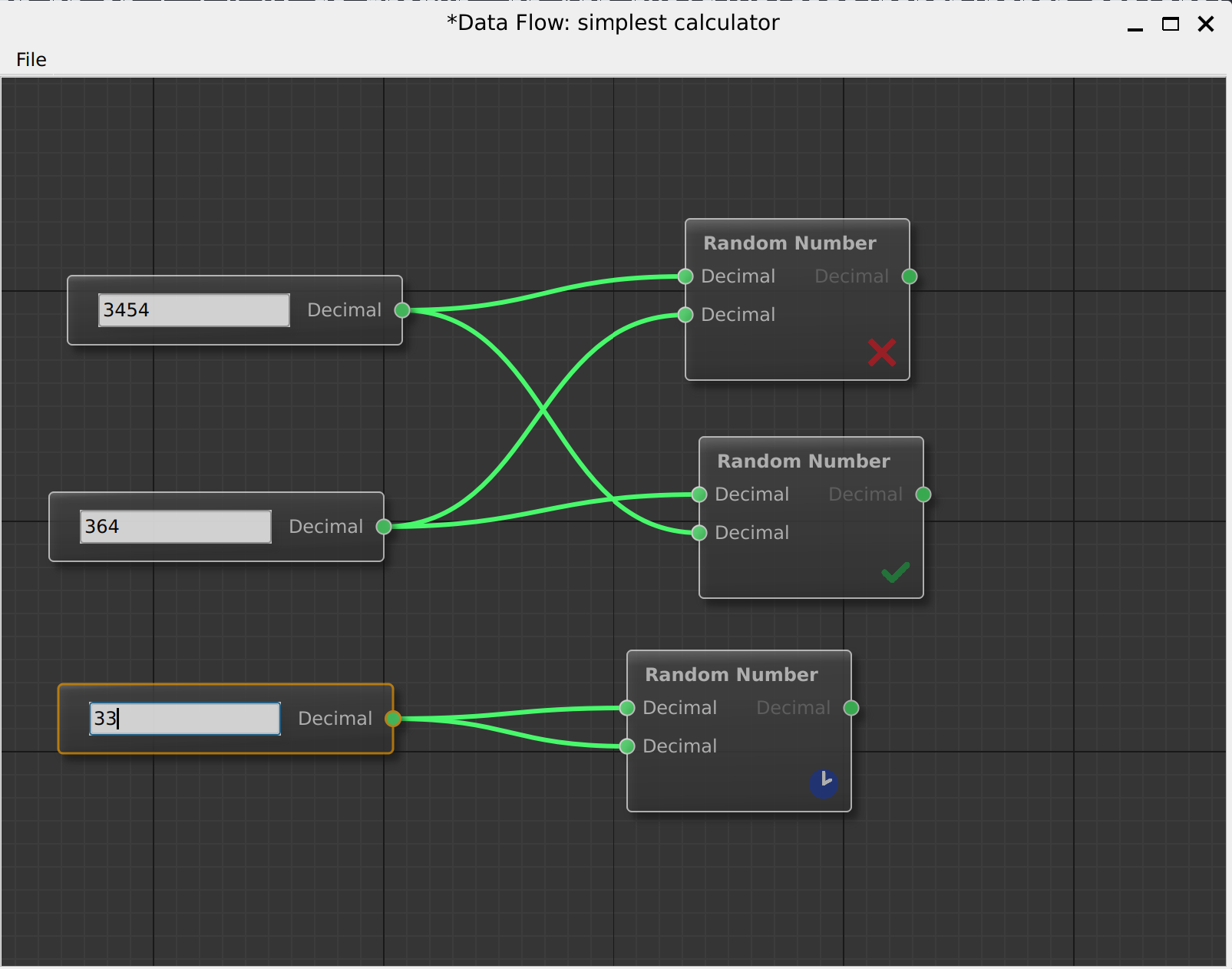

Processing Status

Use NodeProcessingStatus to show computation state. A small status icon appears at the node’s corner indicating the current state:

Status	Meaning
`NoStatus`	Default, no icon shown
`Processing`	Computation in progress (spinner icon)
`Updated`	Successfully completed
`Pending`	Waiting for inputs
`Empty`	No data available
`Failed`	Computation failed
`Partial`	Partially completed (some outputs ready)

void MyNode::compute()
{
    setNodeProcessingStatus(NodeProcessingStatus::Processing);

    // Start async computation...
    QFuture<Result> future = QtConcurrent::run([this]() {
        return heavyComputation();
    });

    // When done:
    watcher.setFuture(future);
    connect(&watcher, &QFutureWatcher::finished, [this]() {
        setNodeProcessingStatus(NodeProcessingStatus::Updated);
        emit dataUpdated(0);
    });
}

Type Compatibility

Connections are only allowed between compatible types. By default, types must match exactly. Override connectionPossible() for custom logic:

bool MyModel::connectionPossible(ConnectionId conn) const
{
    auto outType = portData(conn.outNodeId, PortType::Out,
                            conn.outPortIndex, PortRole::DataType);
    auto inType = portData(conn.inNodeId, PortType::In,
                           conn.inPortIndex, PortRole::DataType);

    // Allow Integer -> Number conversion
    if (outType == "integer" && inType == "number")
        return true;

    return outType == inType;
}

Complete Example

See examples/calculator/ for a complete data flow application with:

Multiple node types (sources, operators, display)
Embedded widgets
File save/load
Custom connection colors
